ell::StatePairCollector Class Reference

#include <StatePairCollector.hh>

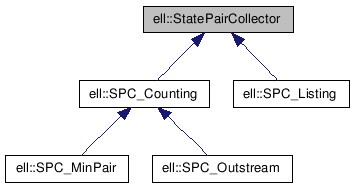

Inheritance diagram for ell::StatePairCollector:

Inheritance graph
[legend]

Detailed Description

This abstract interface is used to keep track of visited pairs of states. For instance, it is used during flooding of the landscape to determine the contact planes between basins.

Author:
Hannes Kochniss

Martin Mann

Definition at line 22 of file StatePairCollector.hh.

Public Types

typedef std::pair< const State *,
const State * >
StatePair

Public Member Functions

virtual void add (const State *const s1, const State *const s2)=0
virtual void add (const StatePair &s)=0
virtual const StatePair getLastAdded () const=0
virtual size_t size () const=0
virtual ~StatePairCollector ()


Member Typedef Documentation

typedef std::pair<const State*,const State*> ell::StatePairCollector::StatePair

a pair of States

Definition at line 27 of file StatePairCollector.hh.


Constructor & Destructor Documentation

virtual ell::StatePairCollector::~StatePairCollector (  )  [inline, virtual]

Definition at line 30 of file StatePairCollector.hh.


Member Function Documentation

virtual void ell::StatePairCollector::add ( const State *const  s1,
const State *const  s2
) [pure virtual]

This function makes the collector manage the given State pair.

Parameters:
s1 the first State of the pair to add
s2 the second State of the pair to add

Implemented in ell::SPC_Counting, ell::SPC_Listing, ell::SPC_Outstream, and ell::SPC_MinPair.

virtual void ell::StatePairCollector::add ( const StatePair s  )  [pure virtual]

This function makes the collector manage the given State pair.

Parameters:
s the State pair to add

virtual const StatePair ell::StatePairCollector::getLastAdded (  )  const [pure virtual]

Returns last added State pair. Note: The pointed States will be deleted when the collector is destroyed. So a cloning is needed in case the pair will be needed later.

Returns:
last added State pair

Implemented in ell::SPC_Counting, and ell::SPC_Listing.

virtual size_t ell::StatePairCollector::size (  )  const [pure virtual]

Returns number of added State pairs.

Returns:
the number of added state pairs

Implemented in ell::SPC_Counting, and ell::SPC_Listing.


The documentation for this class was generated from the following file:
